Power Quality Analyzer
Descarga el Catalago completo dando aquí
SA2100 - FEATURES AND BENEFITS
POWER QUALITY ANALYZER, 1400V/3000mA

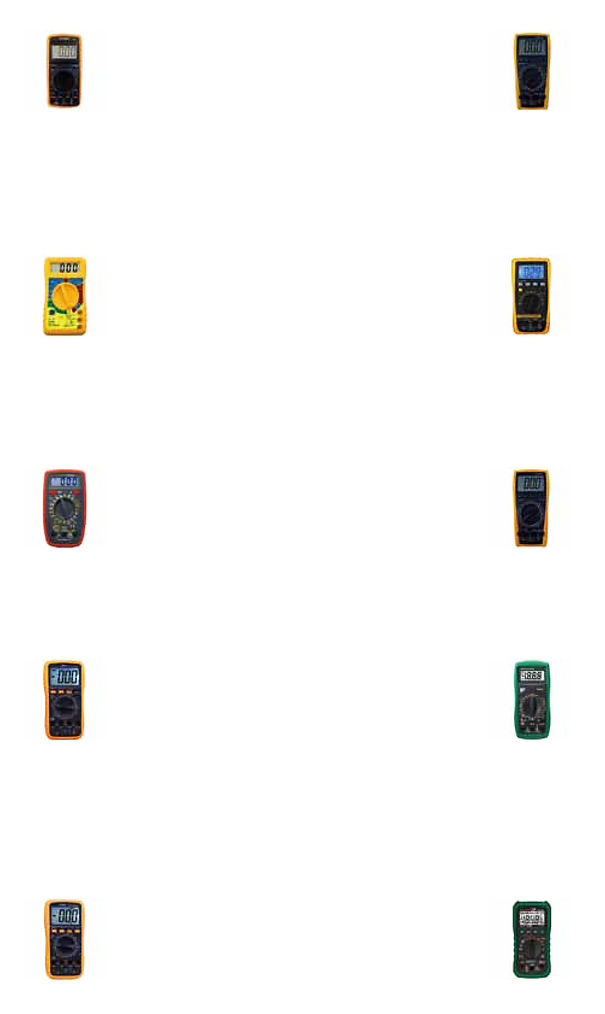

DT9208A 3 ½ digits,Max.reading: 1999
DCV：200m-2-20-200-1000V ±0.5%
ACV：200m-2-20-200-750V ±1.0 %
DCA： 2 m -20m-200m-20A ±1.0%
ACA：20m-200m-20A ±1.5%
Resistance：200-2k-20k-200k-2M-20M-200MΩ ±2.0%
Capacitance：2n -20n-200n-2u-20uF ±4.0% Frequency：2K-20KHz ±1.5% Temperature：-40°C~1000°C ±3.0% Diode Test,Triode Test,Logic level Test Continuity test,Data hold,Auto Power Off
DT820D 3 ½ digits,Max.reading: 1999
DCV: 200m-2000m-20-200-1000V ±0.5%
ACV: 200-750V ±1.2%
Current: 2000u-20m-200m-10A ±1.2%
Resistance :200-2000-20K-200K-2MΩ ±1.0% hFE,Diodes,Low battery indication,Continuity test Square-wave output,Overload protection
DT-33B 3 ½ digits,Max.reading: 1999
DCV: 200m-2000m-20-200-500V ±0.5%
ACV: 200-500V ±1.2%
DCA:200u-200m-10A ±1.0%
ACA:200-2000-20k-200k-20MΩ ±0.8%
Battery Test: 1.5V-9V-12V Diode Test, Continuity test,Backlight display
VICTOR 9802A+ 3 ½ digits,Max.reading: 1999
DCV: 200mV/2V/20V/200V/1000V ±(0.5%+3)
ACV: 2V/20V/200V/750V ±(0.8%+5)
DCA: 20mA/200mA/20A ±(0.8%+3)
ACA: 20mA/200mA/20A ±(1.0%+5)
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/200MΩ ±(0.8%+3)
Capacitance: 20nF/200nF/2uF/200uF ±(2.5%+20) Frequency: 2kHz/200kHz;Temperature:-40°C~1000°C Diode/Transistor test,Continuity buzzer,Live wire judging Low battery indication,Data Hold,Auto power off,Manual range Backlight,Function protection,Shockproof protection Restorable Fuse protection,TTL,Square wave output
Victor 9808+ 3 ½ digits,Max.reading: 1999
DCV: 200mV/2V/20V/200V/1000V ±(0.5%+3)
ACV: 200mV/2V/20V/200V/750V ±(0.8%+5)
DCA: 2mA/20mA/200mA/20A ±(0.8%+10)
ACA: 2mA/20mA/200mA/20A ±(1.0%+15) Resistance:200/2k/20k/200k/2M/20M/2000MΩ ±(0.8%+3)
Inductance: 2mH/20mH/200mH/2H/20H ±(2.5%+30) Capacitance: 20nF/200nF/2uF/20uF/200uF ±(2.5%+20) Frequency:2k/20k/200k/2000k/10MHz ±(1.0%+10) Temperature/Ceisius: -40°C~1000°C ±(1.0%+5) Diode/Transistor test,Continuity buzzer,Low battery indication,Peak hold,Auto power off,Manual range Backlight,Function protection,Shockproof protection
VC9804A+ 3 ½ digits,Max.reading: 1999
DCV: 200mV/2V/20V/200V/1000V
ACV: 2V/20V/200V/750V
DCA: 20mA/200mA/20A
ACA: 20mA/200mA/20A
Resistance : 200Ω/2k/20k/200k/2M/200MΩ Capacitancee: 20nF/200nF/20uF/2000uF Frequency: 2kHz/200kHz Temperature Range: -40°C ~ 1000°C Overload Protection,Data Hold,Auto Power Off Transistor test,Continuity test,Low battery indication
VC86 3 ½ digits,Max.reading: 1999
DCV:200mV/2V/20V/200V/1000V ±(0.5%+4)
ACV: 200mV/2V/20V/200V/750V ±(0.8%+5)
DCA: 200uA/2000uA/20mA/200mA/2A/20A ±(1.0%+5)
ACA: 200uA/2000uA/20mA/200mA/2A/20A ±(1.5%+5)
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.8%+3) Temperature: -40°C~1000°C ±(0.8%+4) (0~ 1832)°F ±(1.2%+4)
Non-contact voltage detect,Diode test,hFE test,Continuity test, Low battery indication, Backlight
VC9808+ 3 ½ digits,Max.reading: 1999
DCV: 200mV/2V/20V/200V/1000V ±(0.5%+3)
ACV: 200mV/2V/20V/200V/750V ±(0.8%+5)
DCA: 2mA/20mA/200mA/20A ±(0.8%+3)
ACA: 2mA/20mA/200mA/20A ±(1.0%+5) Resistance:200/2k/20k/200k/2M/20M/2000MΩ ±(0.8%+3) Inductance: 2mH/20mH/200mH/2H/20H ±(2.5%+20) Capacitance: 20nF/200nF/2uF/20uF/2000uF ±(2.5%+20) Frequency:2k/20k/200k/2000k/10MHz ±(0.5%+4) Temperature/Ceisius: -40°C~1000°C ±(0.8%+4) Diode/hFE test,Continuity buzzer,Low battery indication, Peak hold,Auto power off,Manual range/Auto range(Frequency) Backlight,Function protection,Shockproof protection
MS8321D 3 ½ digits,Max.reading: 1999
DCV: 200mV/2V/20V/200V/1000V ±(0.8%+2)
ACV: 2V/20V/200V/750V ±(1.2%+3)
DCA: 200μA/2mA/20mA/200mA/20A ±(2.0%+5)
ACA: 2mA/20mA/200mA/20A ±(3.0%+10) Resistance:200/2k/20k/200k/2M/20M ±(1.0%+1)
Diode test, hFE test, Transistor test, Continuity buzzer Manual range, Data hold, Low battery indication, Auto power off ECBE(NPN,PNP)
MS8239D 3 ½ digits,Max.reading: 1999
Motor Vehicle Engine Multifunction Analyzer Multimeter
DCV: 200mV/2V/20V/200V/600V ±(0.7%+2)
ACV: 200mV/2V/20V/200V/600V ±(1.0%+3)
DCA: 10A ±(2.0%+10) ACA: 10A ±(3.0%+10) Resistance:200/2k/20k/200k/2M/20MΩ ±(1.0%+3)
DWELL Test: 4CYL/6CYL/8CYL TACH
Test: 4CYL/6CYL/8CYL Max.reading:2000 counts Built-in Engine Analyzer Diode test, Auto range, Continuity buzzer, Fuses protection Backlight display, Data hold CE, RoHS, IEC1010-1 CAT.III 600V certified
VICTOR 86C 3 3/4 digits,Max.reading: 4000
DCV: 400mV/4V/40V/400V/1000V ±(0.5%+4)
ACV: 400mV/4V/40V/400V/750V ±(0.8%+10)
DCA: 400uA/4000uA /40mA/400mA/4A/10A ±(1.0%+10) ACA: 400uA/4000uA /40mA/400mA/4A/10A ±(1.5%+10)
Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(0.8%+4)
Capacitance: 40nF/400nF/4uF/40uF/200uF ±(3.5%+8) Frequency:10/100/1k/10k/100k/1M/30MHz ±(0.5%+4) Temperature: (-20 ~ 1000)°C ±(1.0%+5) (0~1832)°F ±(1.5%+15) Duty cycle,Diode/Transistor test ,Continuity buzzer,Data hold, Low battery indication,Auto power off,Bar graph display RS232 interface jack,Function protection,Max./Min. Shockproof protection,Auto range USB interface can connect to computer
VC 88 3 3/4 digits,Max.reading: 4000
DCV: 400mV/4V/40V/400V/1000V ±(0.5%+4)
ACV: 400mV/4V/40V/400V/750V ±(0.8%+10)
DCA: 400uA/4000uA /40mA/400mA/4A/20A ±(1.0%+5)
ACA: 400uA/4000uA /40mA/400mA/4A/20A ±(1.5%+5)
Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(0.8%+1)
Capacitance: 4nF/40nF/400nF/4uF/40uF/200uF ±(3.5%+8) Frequency:100/1k/10k/100k/1M/30MHz ±(0.5%+4)
Temperature: (-40 ~ 1000)°C ±(0.8%+4) TTL Logic function,Duty cycle,Diode and hFE test, Continuity buzzer,Data hold, Low battery indication, Auto power off,Backlight display,Function protection, Auto range
VC97 3 3/4 digits,Max.reading: 4000
DCV:400mV/4V/40V/400V/1000V ±(0.5%+4)
ACV: 4V/40V/400V/750V ±(0.8%+6)
DCA: 400uA/4000uA/40mA/400mA/20A ±(1.0%+5)
ACA: 400uA/4000uA/40mA/400mA/20A ±(1.5%+5)
Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(0.8%+1) Capacitance:4nF/40nF/ 400nF/4uF/40uF/200uF ±(3.5%+8) Frequency:100Hz/1kHz/10kHz/100kHz/1MHz/30MHz ±(0.5%+4) Temperature: -40°C~1000°C ±(0.8%+4) Diode test,hFE test,Continuity test,Low battery indication Duty cycle,Data hold,Auto power off,Function protect,Auto range
VICTOR 98A Intelligent digital multimeter
DCV: 40mV-400mV-4V-40V-400V-1000V ±(0.2%+4)
ACV: 400mV-4V-40V-400V-750V ±(0.5%+4)
DCA: 400uA~10A ±(0.5%+4) ACA: 400uA~10A ±(1.0%+4)
Capacitance: 50nF-500nF-5μF-50μF-100μF ±(5.0%+5)
Frequency: 50Hz-500Hz-5kHz-50kHz-100kHz ±(0.1%+3)
Duty Cycle:0.1%~99% ±1.0% Diode Test,Continuity Test,Thermocouple,dBm, Thermo resistance,Auto hold,Display hold,Peak hold Panel calibration function Three convenient data recording modes:LOG mode,MANUAL mode and COMPmode USB-IR jack to connect with PC
VICTOR 86B 3 3/4 digits,Max.reading: 4000
DCV: 400mV/4V/40V/400V/1000V ±(0.5%+4)
ACV: 400mV/4V/40V/400V/750V ±(0.8%+10)
DCA: 400uA/4000uA /40mA/400mA/4A/10A ±(1.0%+10)
ACA: 400uA/4000uA /40mA/400mA/4A/10A ±(1.5%+10)
Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(0.8%+4)
Capacitance: 50nF/500nF/5uF/50uF/100uF ±(3.5%+8) Frequency:4Hz/40Hz/400Hz/4kHz/40kHz/400kHz/ 4MHz/30MHz ±(0.1%+4) Temperature: (-20 ~ 1000)°C ±(1.0%+5) Duty cycle,Diode test ,Continuity buzzer ,Data hold, Low battery indication,Auto power off,Bar graph display RS232 interface jack,Function protection, Shockproof protection,Auto range USB interface can connect to computer
MS8229 3 3/4 digits,Max.reading: 4000 5-in-1:Multimeter, Sound Level Meter, Light Meter Ambient Temperature and Humidity Tester
DCV: 400mV/4V/40V/400V/1000V ±(0.7%+2)
ACV: 400mV/4V/40V/400V/750V ±(0.8%+3)
DCA: 400uA/4000uA/40mA/400mA/4A/10A ±(2.0%+10)
ACA: 400uA/4000uA/40mA/400mA/4A/10A ±(3.0%+10) Resistance:400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1.2%+5) Capacitance: 40nF/ 400nF/4μF/40μF/100μF ±(3.0%+3) Frequency:10Hz/100Hz/1kHz/10kHz/100kHz ±(2.0%+5) Temperature:-20°C~1000°C ±2.0% -4°F~1832°F ±2.0%
Duty Cycle:0.1%~99% ±3.0%
Ambient temperature: 0°C~40°C ±2.0°C 32°F~104°F ±4.0°F Relative humidity: 30%~95% ±5.0% Sound level:35dB~100dB ±3.5%
Luminance: 4000 Lux/40000 Lux ±5.0%
Diode test,Continuity buzzer,Low battery indication Data hold,Auto power off, Backlight display Relative measurement,Auto range
MS8251C 3 3/4 digits,Max.reading: 4000
DCV:400mV/4V/40V/400V/1000V ±(0.8%+3) ACV:400mV/4V/40V/400V/1000V ±(1.0%+3)
DCA: 400μA/4000μA/40mA/400mA/10A ±(2.0%+5)
ACA: 400μA/4000μA/40mA/400mA/10A ±(3.0%+5) Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1.5%+5) Capacitance:4nF/40nF/400nF/4μF/40μF/400μF/4mF/40mF ±(4.0%+5) Frequency(V position):40Hz/400Hz/4kHz/10kHz ±(1.5%+5) Frequency(Hz position):40/400/4k/40k/400k/4M/40MHz ±(1.5%+5) Temperature: 0°C~1000°C / 32°F~1832°F ±(1.0%+3)
Duty cycle:1%~99% ±(2.0%+2) True RMS,Diode test,Non-contact voltage detection,Continuity buzzer, Low battery indication,Data hold,Auto power off,Backlight display, Max./Min., Auto range
VC87 3 5/6 digits,Max.reading: 6000
DCV: 600mV/6V/60V/600V/1000V ±(0.5%+3)
ACV(TRMS): 6V/60/600/750V ±(1.0%+10)
VSD-V(TRMS): 6V/60/600/750V ±(2.0%+10)
DCA: 600uA/6000uA/60mA/600mA/6A/20A ±(0.8%+3)
ACA: 600uA/6000uA/60mA/600mA/6A/20A ±(1.0%+20) Resistance:600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+5) Capacitance: 40nF/ 400nF/4μF/40μF/400μF/2000μF ±(3.5%+8) Frequency:100Hz/1kHz/10kHz/100kHz/1MHz/60MHz ±(0.5%+4) Temperature:-40°C~1000°C ±(0.75%+3);0°F~1832°F ±(1.2%+3) True RMS,Diode test,hFE test,Continuity test, Low battery indication,Duty cycle,Data hold,Auto power off,Analog bar,Backlight display,Function protection,Auto range
VC99 3 5/6 digits,Max.reading: 6000
DCV: 600mV/6V/60V/600V/1000V ±(0.5%+4)
ACV: 6V/60/600/750V ±(0.8%+6)
DCA: 600uA/6000uA/60mA/600mA/6A/20A ±(0.8%+3)
ACA: 600uA/6000uA/60mA/600mA/6A/20A ±(1.5%+10) Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60M ±(0.8%+5) Capacitance: 40nF/ 400nF/4uF/40uF/400uF/2000uF ±(3.5%+8) Frequency:100Hz/1kHz/10kHz/100kHz/1MHz/60MHz ±(0.5%+4) Temperature:-40°C~1000°C ±(0.75%+3) 0°F~1832°F±(1.2%+3) Diode and hFE test,Continuity test, Low battery indication, Duty cycle Data hold,Auto power off,Analog bar,Function protect,Auto range
VICTOR 86D 3 5/6 digits,Max.reading: 6000
DCV: 600mV/6V/60V/600V/1000V ±(0.5%+4)
ACV: 6V/60V/600V/750V ±(0.8%+10)
DCA: 600uA/6000uA /60mA/600mA/10A ±(1.2%+10)
ACA: 600uA/6000uA /60mA/600mA/10A ±(1.5%+10)
Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+4)
Capacitance: 40nF/400nF/4uF/40uF/200uF ±(3.5%+8)
Frequency: 100Hz/1kHz/10kHz/100kHz/1MHz/30MHz ±(0.5%+15) Temperature/Ceisius: (-20 ~ 1000) / (0~1832) ±(1.5%+15)
Duty cycle,Diode test ,Continuity buzzer ,Data hold,Max./ Min,
Auto power off ,Unit symbol display,RS232 interface jack, Shkproof protection,Auto range,Low battery indication USB interface can
connect to computer
DT-5803 4 ½ digits,Max.reading: 19999
DCV: 200m-2-20-200-1000V ±0.5%
ACV: 2-20-200-750V ±1.0 %
DCA: 200u-2m-20m-200m-20A ±1.0%
ACA: 2m-20m-200m-20A ±1.5%
Resistance: 200-2K-20K-200K-2M-20MΩ ±1.0%
Capacitance: 2n-20n-200n-2u-20uF ±4.0%
Frequency: 20KHz ±1.5%
Diode Test, Triode Test,Continuity test,Auto Power Off
VC980+ 4 ½ digits,Max.reading: 19999
DCV: 200mV/2V/20V200V/1000V ±(0.05%+3)
ACV: 200mV/2V/20V/200V/750V ±(0.8%+25)
DCA: 200uA/20mA/200mA /20A ±(0.5%+4)
ACA: 200mA /20A ±(1.5%+25)
Resistance: 200/2k/20k/200k/2M/20M/200MΩ ±(0.2%+5)
Capacitance: 20nF/2uF/200uF ±(4.5%+50)
Frequency: 20kHz/200kHz ±(1.5%+25)
True RMS,Diode & Transistor test, Continuity buzzer,Data hold Low battery indication,Auto power off,Function protection, Restorable Fuse protection,Shock proof protection ,Auto range
VC9806+ 4 ½ digits,Max.reading: 19999
DCV: 200mV/2V/20V/200V/1000V ±(0.05%+3)
ACV: 2V/20V/200V/750V ±(0.8%+25)
DCA: 200uA/2mA/20mA/200mA/20A ±(0.5%+4)
ACA: 200mA /20A ±(1.5%+25)
Resistance: 200/2k/20k/200k/2M/200MΩ ±(0.2%+5)
Capacitance: 2nF/20nF/200nF/2uF/200uF ±(2.0%+20)
Frequency: 200kHz ±(3.0%+15)
Diode test, hFE test, Continuity buzzer,Data hold, Backlight Low battery indication,Auto power off,Function protection, Anti-shock protect,Manual range
VC9807A+ 4 ½ digits,Max.reading: 19999
DCV: 200mV/2V/20V/200V/1000V ±(0.1%+5)
ACV: 2V/20V/200V/750V ±(0.8%+25)
DCA: 200uA/2mA/20mA/200mA/20A ±(0.5%+4)
ACA: 200mA /20A ±(1.5%+25)
Resistance: 200/2k/20k/200k/2M/20MΩ ±(0.4%+5)
Conductance:(0.1~100)ns ±(1.0%+30)
Capacitance: 20nF/2uF/200uF ±(2.0%+20)
Frequency: 2kHz/200kHz ±(3.0%+15)
Diode test, hFE test, Continuity buzzer,Data hold, Backlight Low battery indication,Auto power off,Function protection, Anti-shock protect,Manual range
DT3266L 3 ½ digits,Max.reading: 1999
DCV:2-20-200-600V ±(0.8%+3dgt)
ACV:2-20-200-600V ±(1.2%+5dgt)
ACA:2-20-200-600A ±(2.0%+5dgt)
Resistance:200-2K-20K-200K-2M-20MΩ ±(1.0%+3dgt)
Clamp open:∮26mm Low battery indication, Overload protection,
DT-203 3 ½ digits,Max.reading: 1999
DCV:200m-2-20-200-600V ±1.0%
ACV:200m-2-20-200-600V ±1.2%
ACA:2-20-200-400A ±2.0%
Resistance:200-2K-20K-200K-2M-20MΩ ±1.0%
Clamp open:∮28.5mm Auto Range,Diode Test,Continuity test, Data hold,Peak hold,Backlight display
DT-203T 3 ½ digits,Max.reading: 1999
DCV:400m-4-40-400-600V ±1.0%
ACV(True RMS):400m-4-40-400-600V ±1.2%
ACA(True RMS):400-600A ±2.0%
Resistance:400-4K-40K-400K-4M-40MΩ ±1.0% Capacitance:400n-40u-100uF ±5.0%
Frequency:5-50-500-5k-50k-500k-5MHZ ±0.3% Temperature:-40°C~400°C, -40°F~752°F ±3.0%
Duty Cycle:0.01%~99.9% ±0.1%
Clamp open:∮40mm Auto Range,Diode Test,Continuity test, Data hold,Peak hold,Backlight display
DM201 3 ½ digits,Max.reading: 1999
DCV:200mV/2V/20V/200V/600V ±(1.0%+3) ACV:200mV/2V/20V/200V/600V ±(1.5%+5) ACA:2A/20A/200A/600A ±(2.0%+5) Resistance:200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(1.0%+3) Diode test ,Continuity alarming,Low battery indication Data hold/Max. hold ,Auto power off ,Function protect Clamp open 35mm
DM204 3 3/4 digits,Max.reading: 3999
DCV: 200mV/2V/20V/200V/600V ±(1.0%+3)
ACV: 200mV/2V/20V/200V/600V ±(1.5%+5)
ACA: 2A/20A/200A/600A ±(2.0%+5)
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ±(1.0%+3)
Capactiance: 40nF/400nF/4uF/40uF/200uF ±(3.0%+5) Temperature: (-40~ 1000)°C ±(0.8%+4) Frequency:100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(0.5%+3)
Diode test,Continuity alarming,Low battery indication Data hold/Max. hold,Auto power off,Function protect Clamp open 35mm
DM6016A 3 3/4 digits,Max.reading: 4000
DCV: 400mV/4V/40V/400V/600V ±(1.0%+3)
ACV: 400mV/4V/40V/400V/600V ±(1.5%+5)
ACA: 40A/400A/1000A ±(2.0%+5)
Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1.0%+3) Frequency:100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(0.5%+3) Temperature: (-40~ 1000)°C ±(0.8%+4)
Diode test,Continuity alarming,Low battery indication Data hold/Max. hold,Auto power off,Function protect Clamp open 35mm
DM6016B 3 3/4 digits,Max.reading: 4000
DCV: 400mV/4V/40V/400V/600V ±(1.0%+3)
ACV: 400mV/4V/40V/400V/600V ±(1.5%+5)
ACA: 40A/400A/1000A ±(2.0%+5)
Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1.0%+3)
Capactiance: 40nF/400nF/4uF/40uF/200uF±(3.0%+5) Frequency:100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(0.5%+3) Temperature: (-40~ 1000)°C ±(0.8%+4)
Diode test,Continuity alarming,Low battery indication Data hold/Max. hold,Auto power off,Function protect Clamp open 35mm
VICTOR 6050 3 3/4 digits,Max.reading: 4000
DCV 400mV/4V/40V/400V ±（0.5%+4d） 1000V ±（1.0%+6d）
DCA 400A ±(2.5%+20d); 2000A ±(3.5%+20d)
ACV 400mV ±（1.6%+8d） 4V/40V/400V ±（0.8%+10d） 750V ±（1.0%+10d）
ACA 400A ±(2.5%+20d) 2000A ±(3%+10d)
Resistance 400Ω ±（0.8%+5d） 4kΩ/40kΩ/400kΩ/4MΩ ±（0.8%+4d） 40MΩ ±（1.2%+10d）
Capacitance 40nF ±(5.0%+30d) 400nF/4μF/40μF ±(3.5%+8d) 100μF ±(5.0%+10d)
Frequency 5.120Hz/51.20Hz/512.0Hz/5.120kHz /51.20kHz/512.0kHz/100.0kHz ±(0.5%+4d)
Duty cycle 0.1%~99.9% Clamp open:55mm
Diode test, Continuity Buzzer,Low battery indication Auto power off, Data hold/Peak hold,Manual range Relative value measurement
CM-2070FT 3 3/4 digits,Max.reading:4000
DCV: 400mV/4V/40V/400V/1000V ±(0.5%+5)
ACV: 400mV/4V/40V/400V/750V ±(1.0%+5)
ACA: 400A/1000A ±(2.0%+5) Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(0.8%+3)
Capacitance: 40nF/400nF/4uF/40uF/100uF±(3.5%+5) Frequency:10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(0.5%+5)
Temperature: (-40~ 1000)°C ±(1.0%+5)
Diode test,Continuity test,Low battery indicator,Data hold Auto power off,Function protection,Clamp light, Backlight display; Clamp open 52mm
CM-2070C 3 ½ digits,Max.reading: 1999
DCV: 200mV/2V/20V/200V/1000V ±(0.5%+5)
ACV: 200mV/2V/20V/200V/750V ±(1.0%+5)
ACA: 200A/1000A ±(2.0%+5)
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.8%+3) Temperature: (-40~ 1000)°C ±(1.0%+5) (0~ 1832)°F ±(1.0%+5) Diode test,Continuity test,Low battery indicator, Data hold,Auto power off,Function protection, Clamp light,Backlight display,Clamp open 52mm
VICTOR 6056A+
DCV: 400mV/4V/40V/400V ±(0.5%+4d);1000V ±(1.0%+6d)
DCA: 40A ±(3%+8d);400A ±(2.5%+8d);1000A ±(3%+10d)
ACV: 400mV ±(1.6%+8d) 4V/40V/400V ±(0.8%+10d);750V ±(1.0%+10d)
ACA: 40A ±(3%+10d);400A ±(2.5%+8d);1000A ±(3%+10d) Resistance: 400Ω ±(0.8%+5d); 40MΩ ±(1.2%+10d) 4kΩ/40kΩ/400kΩ/4MΩ ±(0.8%+4d)
Capacitance: 4nF ±(3.5%+30d);100uF ±(5.0%+10d) 40nF/400nF/4uF/40uF ±(3.0%+10d) Frequency:9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz ±（0.5%+4d）
VICTOR 6052 3 3/4 digits,Max.reading: 4000
DCV 4V/40V/400V ±（0.5%+4d） 1000V ±（1.0%+6d）
DCA 400A ±(2.5%+20d) 2000A ±(3.5%+20d)
ACV 400mV ±（1.6%+8d） 4V/40V/400V ±（0.8%+10d） 750V ±（1.0%+10d）
ACA 400A ±(2.5%+20d) 2000A ±(3%+10d)
Resistance 400Ω ±（0.8%+5d） 4kΩ/40kΩ/400kΩ/4MΩ ±(0.8%+4d) 40MΩ ±（1.2%+10d）
Capacitance 40nF ±(5.0%+30d) 400nF/4μF/40μF ±(3.5%+8d) 100μF ±(5.0%+10d)
Frequency 5.120Hz/51.20Hz/512.0Hz/5.120kHz /51.20kHz/512.0kHz/100.0kHz ±(0.5%+4d)
Duty cycle: 0.1%~99.9%
Clamp open:55mm
Diode test, Continuity Buzzer,Low battery indication Auto power off, Data hold/Peak hold,Manual range Relative value measurement
SP4481 - Features and Benefits Power Meter,Max to 50.0GHz
Frequency Range:100kHz~50GHz(sensor dependent) Offset measurements
Limit measurements Allows entry of input frequency for automatic calibration factor selection
Remote Function
Range Setting
≥ 20000 hours MBTF
Save up to 9 types measurement setup
Option interface:USB,GPIB
MS5908 - Features and Benefits TRMS Voltage GFCI RCD Tester Circuit Analyzer Meter
True RMS for measuring AC voltage
Artificial load 12A, 15A, 20A for measuring line voltage drop
Measuring phase voltage, neutral line(zero line) voltage to earth, peak voltage, frequency
Measure phase (live line), neutral line(zero line), earth line conductor impedance
Identifying 3-wire socket connection mode(zero for left and live for right, having earth or not)
Test the reliability of residual current device (RCD) and response action time
Test the reliability of GFCI action and response action time Back light and data hold functions
MS5900 - Features and Benefits Three Phase Rotation Indicator
4 main functions: rotary field direction, non-contact rotary field indication, motor connection & magnetic field detection
Indicate phase orientation (Clockwise or anticlockwise)
Fast and accurate measurement
With simultaneous indications via LEDs
Portable and compact design
Battery operated
